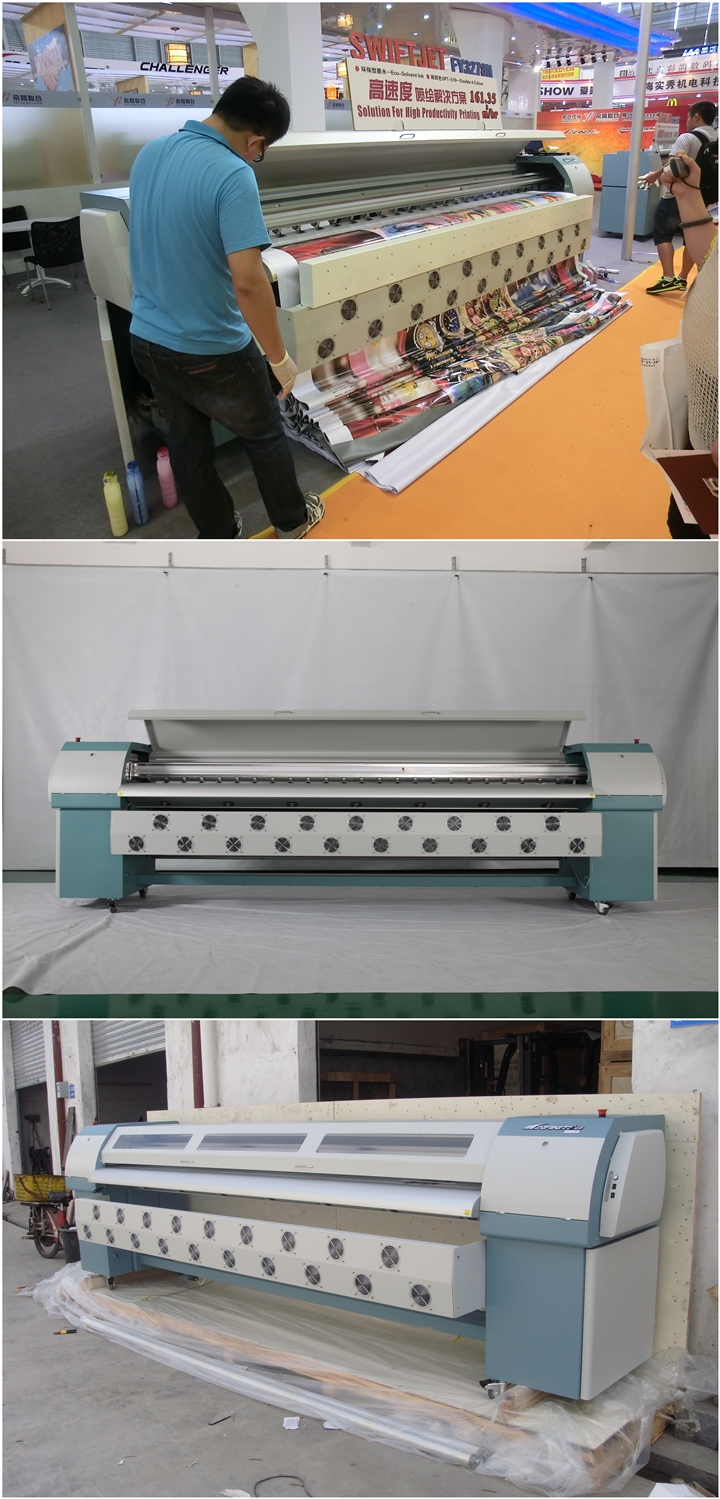

Infiniti FY-3278N fast solvent printer
NAME:Infiniti/Challenger FY-3278N
TYPE:Solvent Inkjet Printer
Print Head:4/8 SEIKO 510/50pl Print Heads
Color:C/M/Y/K
Voltage/Gross Power:220V/660W
Dimensions(L*W*H):L4390*W970*H1290mm/405KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification
1,Large format solvent printer (FY-3278N) , 8printerhead,510 nozzles per printhead.Max printing speed 157sqm/㎡.
2,Eight SPT 510/50pl printhead, four color printing with two heads each color, max print resolution,360*720dpi
3,Three intelligent heater:
Preheating prepares ther media for better absorption of ink.
Platform heating increases the brightness of print.
Front heating helps the dying and increases the outdoor durability of the print.
4.Import Motor and Driver from America,With higher quality and longer life.
5,44 pairs of reinforced pich rollers are specially designed to optimize precision of media feeding.
6,100% single color black is used on printing black text to avoid mixture of color.
7,The adjustment of bi-direction, step and carriage moving speed can be modified during printing.
8,The function of skipping white space is added to increase productivity.
9,Well designed alloy aluminum girder is installed to decrease the noise during printing. Achieve
the perfect quiet working environment.
10,Edge feather function can blur the pass line and feather pass edge.
|
Model |
FY-3278N |
||
|
Printhead |
Drop on demand Piezo Head(SPT510-50PL) |
||
|
Mumber of Printhead |
4 or 8 Heads |
||
|
Maximun Print Width |
3,200mm(125.98inch) |
||
|
Print Speed |
157m2/hr Draft 2Pass |
||
|
|
109m2/hr Standard 3Pass |
||
|
|
91m2/hr Quality 3Pass |
||
|
|
46m2/hr Compensation 3Pass |
||
|
|
|
||
|
Media |
Max.width |
3,300mm(129.92'inch) |
|
|
|
Max.Weight |
Roll media:80kg |
|
|
|
Type |
Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper... |
|
|
|
Thickness |
4.5mm(Max.) |
|
|
Heating System |
3 way intelligent heater |
||
|
Auto Media Feeding& Take-up System |
Equipped |
||
|
Ink |
Type |
Solvent C,M,Y,K ink. |
|
|
|
Capacity |
1L or 5L per Color Main Tank |
|
|
Auto Cleaning System |
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System |
||
|
Print Interface |
USB 2.0 |
||
|
Power Specification |
AC 220V/230V 50Hz/60Hz 2300W |
||
|
Operational Environment |
Temperature20°C-28°C Humidity40%-60% |
||
|
Compatible RIP Software |
Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop |
||
|
Dimension & Weight |
Machine |
L4,630mm X W860mm X H1,340mm 680kg |
|
|
Package |
L4,650mm X W970mm X H1,550mm 780kg |
||
