Galaxy sublimation printer UD-1812LB

NAME:Galaxy UD-1812LB


TYPE:Sublimation Solvent Inkjet Printer


Print Head:2 EPSON DX5 Print Heads


Color:C/M/Y/K


Voltage/Gross Power:AC 220V,50Hz/60Hz


Dimensions(L*W*H):L3080*W990*H1260mm/204KGS


Warranty:1 Year


Place Of Origin:Guangdong,China

鏆傛棤鐩稿叧淇℃伅!
鏆傛棤鐩稿叧淇℃伅!

Detailed Specification

1.Full alloy-aluminum platform.

2.AC servo motor for both X and Y direction which are stable and durable.

3.User friendly control panel.

4.Rear,platen,and front individual heating system imprive the printing quality.

5.Carriage height adjustable system(Max printing height 10mm).Print directly on PS,and KT board and PVC foam board.

6.Self-developed automatic cleaning and capping system which makes the operation and maintenance convenient.

7.No space between bearings and rails for the carriage movement with low noise,low resistance,and no vibration.Market approved that it is durable.

8.New designed constant pressure ink supply system with inserted ink bottle which is clean,reliable,at the same time,the ink flow is more fluent.

Model
Galaxy UD-1812LB
Printhead
EPSON DX5 Print Head
Number of printhead
2 Heads
Maximum print width
1,800mm
Print Speed (m2/h)
Print mode
Standard output(m2/h)
D
2 pass 55
S
4 pass 28
Q
6 pass 19
HQ
8 pass 15
C
12 pass 9
Ink
Type
Disperse Dye
Color
4Color (C,M,Y,K)
Capacity
1L Main Tank of Each Color
Ink Supply System
Auto Ink Supply
System
Media Width
Maximum 1,880mm
Media Type
Polyester
Auto Media Feeding System
Equipped (Max. Media Weight 25kg)
Auto Cleaning System
Anti-clogged Flash Function&Capping System
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
USB 2.0
Printhead Height
2 to 6 mm from Media
RIP Software
Ultraprint,Maintop,Photoprint,Wasatch,Ergosoft
Input Power
AC 220V, 50Hz/60Hz
Machine Dimension / N.W
L3,080 x W990 x H1,260mm / 204KG
Package Dimension / G.W
L3,190 x W1100 x H845mm / 381KG
Requirement
Temperature:20°C-28°C Humidity:40%-60%












Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...

Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should  be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.

Setp3.Confirm us receipt of products.



1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.

2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.

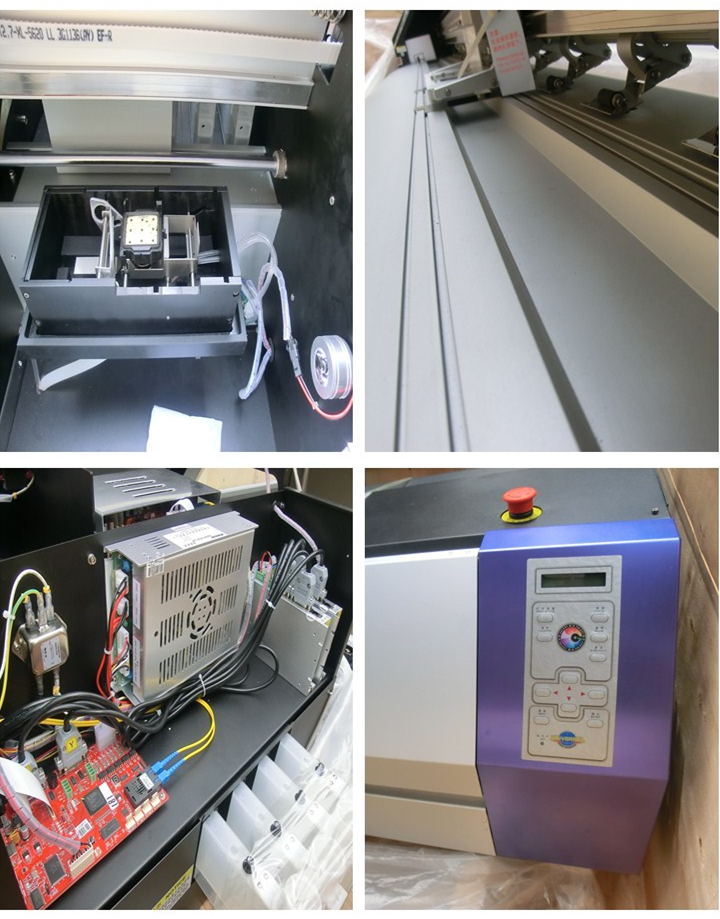

Photos
