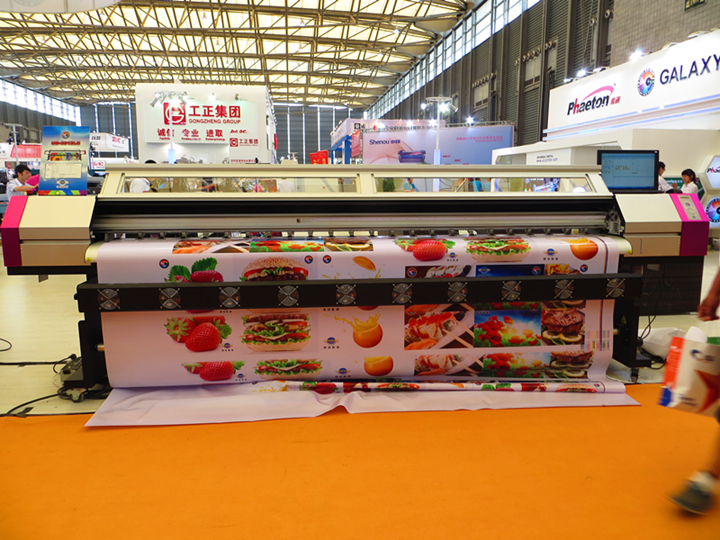

Galaxy eco solvent printer UD-3212LD
NAME:Galaxy UD-3212LD
TYPE:Eco Solvent Inkjet Printer
Print Head:2 EPSON DX5 Print Heads
Color:C/M/Y/K
Voltage/Gross Power:AC 220V,50Hz/60Hz
Dimensions(L*W*H):L4500*W905*H1260mm/304KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification

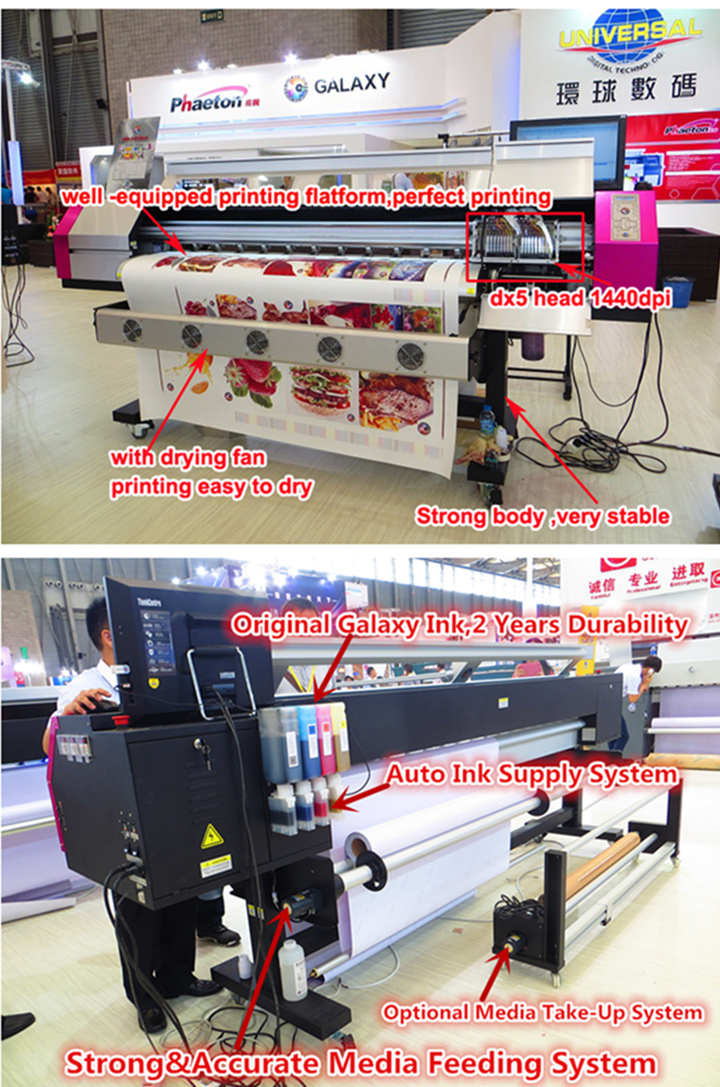

1.Full alloy-aluminum platform.
2.AC servo motor for both X and Y direction which are stable and durable.
3.User friendly control panel.
4.Rear,platen,and front individual heating system imprive the printing quality.
5.Carriage height adjustable system(Max printing height 10mm).Print directly on PS,and KT board and PVC foam board.
6.Self-developed automatic cleaning and capping system which makes the operation and maintenance convenient.
7.No space between bearings and rails for the carriage movement with low noise,low resistance,and no vibration.Market approved that it is durable.
8.New designed constant pressure ink supply system with inserted ink bottle which is clean,reliable,at the same time,the ink flow is more fluent.
|
Model
|
Galaxy UD-3212LD
|
|
|
Printhead
|
EPSON DX5 Print Head
|
|
|
Number of printhead
|
2 Heads
|
|
|
Maximum print width
|
3,200mm
|
|
|
Print Speed (m2/h)
|
Print mode
|
Standard output(m2/h)
|
|
D
|
3 pass 44
|
|
|
S
|
4 pass 33
|
|
|
Q
|
6 pass 22
|
|
|
HQ
|
8 pass 16
|
|
|
C
|
12 pass 11 | |
|
Ink
|
Type
|
ECO Solvent Ink
|
|
Color
|
4Color (C,M,Y,K)
|
|
|
Capacity
|
1L Main Tank of Each Color
|
|
|
Ink Supply System
|
Auto Ink Supply
System |
|
|
Media Width
|
Maximum 1,880mm
|
|
|
Media Type
|
Vinyl,Polyester, Flex, Back-lit Film,PS Board,KT board,PVC board etc.
|
|
|
Auto Media Feeding System
|
Equipped (Max. Media Weight 40kg)
|
|
|
Auto Cleaning System
|
Anti-clogged Flash Function&Capping System
|
|
|
Pre-heating & Drying System
|
Equipped
|
|
|
Clamp
|
Equipped
|
|
|
Print Interface
|
USB 2.0
|
|
|
Printhead Height
|
2 to 10 mm from Media
|
|
|
RIP Software
|
Ultraprint,Maintop,Photoprint,Wasatch,Ergosoft
|
|
|
Input Power
|
AC 220V, 50Hz/60Hz
|
|
|
Machine Dimension / N.W
|
L4,500 x W905 x H1,260mm / 304KG
|
|
|
Package Dimension / G.W
|
L4,590 x W1100 x H940mm / 547KG
|
|
|
Requirement
|
Temperature:15°C-35°C Humidity:20%-80%
|
|
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...
Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.
Setp3.Confirm us receipt of products.
2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.
