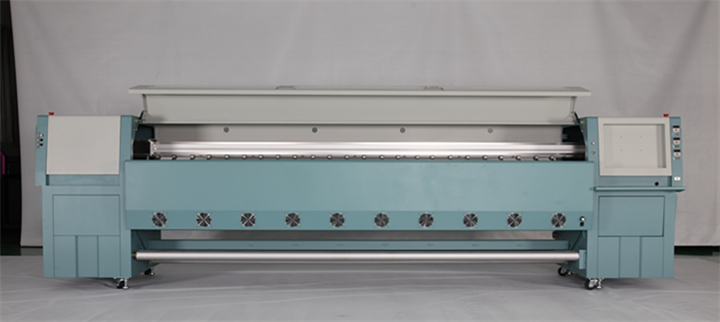

New arrival!FY-32712Y heavy duty outdoor printer
NAME:Infiniti/Challenger FY-32712Y
TYPE:Solvent Inkjet Printer
Print Head:12 SEIKO 510/50pl Print Heads
Color:C/M/Y/K
Voltage/Gross Power:220V/1100W
Dimensions(L*W*H):L4850*W1020*H1350mm/610KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification
1.With 12 pieces 510/50pl printheads.
2.3.2m max printing width, AC x,y servo motor printer operate stably.
3.High resolution,720dpi
4 .Corlor: C M Y K
5. Adopt USB2.0 output system,faster and more flexible
6.Full aluminium platform, luxury appearance, beautiful shape.
7.High printing speed is up to 282 m 2 /h
8.X,Y servo motor operate stably
Product Model
FY-32712Y
Printhead
510-50PL
Ink Type
Solvent ink / ECO Solvent ink
Print mode
Draft 2 pass 282sqr/h
Standard 3 pass 200sqr/h
Quality 4 pass 153sqr/h
High quality 6 pass 105sqr/h
High quality 8 pass 61sqr/h
Ink Supply System
Low ink Detector,Auto or Manual ink Supply System
Width
3300mm(129,92inch)
Maximum Print Width
3200mm(125,98inch)
Type
Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc Roll Media or Sheet Media
Auto Media Feeding System
Equipped(Max Media Weight 80kg)
Auto Cleaning System
Positive Cleaning Anti-clogged Flash Function
Pre-heating&Drying System
Equipped (Drying System Optional)
Clamp
Equippes
Print interface
USB2.0
Printhead Height
Above Media Adjustable
RIP Software
Maintop/UitraPrint/Photoprint
Input Power
AC220V,50HZ 2750W
Operation Environment
Temperature:20-28°C Humidity:40%-70%
Machine Dimension/NW
L4850×W1020×H1350mm 610kg
Package Dimension/GW
L4980×W1140×H1640 893kg
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...
Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.
Setp3.Confirm us receipt of products.
1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.
2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.
