Infiniti/Challenger digital printer FY-3266T
NAME:Infiniti/Challenger FY-3266T
TYPE:Solvent Inkjet Printer
Print Head:6 SEIKO 1020/35pl Print Heads
Color:C/M/Y/K/Lc/Lm
Voltage/Gross Power:220V/770W
Dimensions(L*W*H):L4460*W905*H1280mm/368KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification

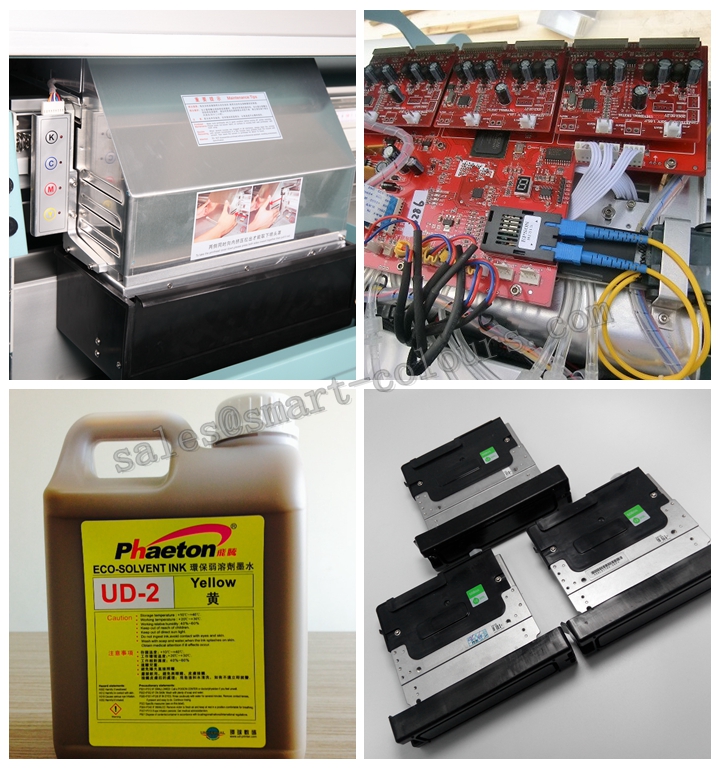

1, Equipped with Seiko SPT1020/35pl print head, printing width of 71.8mm, and 720dpi resolution.
2, 6 color printing, the standard output achieves 75m2/hr.3, AC servo motor is to run the carriage quicker and more stable.
4, Individual color purging minimizes the waste of the ink.
5, 3 way intelligent heater helps bring more vivid output.
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
7, Adopt USB2.0output system, faster and more flexible
| MODEL | FY-3266T | ||
|
Printhead SII Printek Inc. |
6 SPT1020/35PL | ||
| Number of printhead | 4/6 Heads | ||
| Output Quantity (m2/h) | Print Mode | Outputs(m2/h) | |
| Draft | 2Pass | 101 | |
| Standard | 3Pass | 75 | |
| Quality | 4Pass | 50 | |
| High Quality | 6Pass | 27 | |
| Back-lit | 8Pass | 27 | |
| Max. printing width | 3200mm | ||
| Max. media width | 3300mm | ||
| Ink | Type | Solvent ink | |
| Color | (C,M,Y,K) or (C,M,Y,K,Lc,Lm) | ||
| Volume | 2 liters main tank | ||
| Ink supply system | Ink level sensor. Auto-pumping | ||
| Media | Width | 3300mm | |
| Type | Banner, vinyl, polyester, etc | ||
| Feeding System | Single or double feeding bar. (Max weight 80kg) | ||
| Ph. Cleaning System | Individual color purging | ||
| Heating System | Back, middle, front, and extra heater. | ||
| Clamp | Equipped | ||
| Printhead Height | Adjustable distance from 2mm~6mm. | ||
| Power Specification |
Printer: AC220V，50Hz 3.5A 770W Heater: AC220V，50Hz 9A 1980W Drying: AC220V，50Hz 10A 2200W |
||
| Printer Dimension/Weight | L4460xW905xH1280mm /368Kg | ||
| Package Dimension/Weight |
L4590xW970xH1550mm / 611Kg |
||
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...
Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.
Setp3.Confirm us receipt of products.
1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.
2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.
