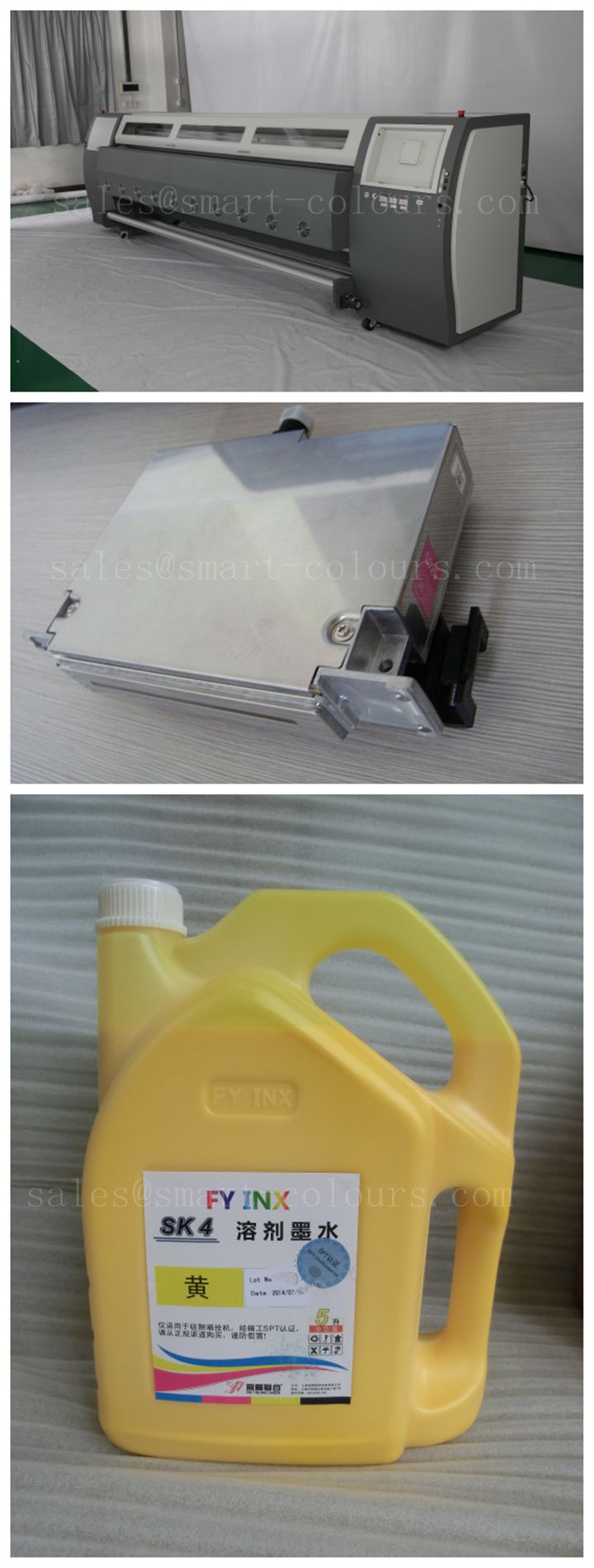

Outdoor solvent printer FY-3266J
NAME:Infiniti/Challenger FY-3266J
TYPE:Solvent Inkjet Printer
Print Head:6 SEIKO 1020/35pl Print Heads
Color:C/M/Y/K/Lc/Lm
Voltage/Gross Power:220V/770W
Dimensions(L*W*H):L4766*W930*H1350mm/640KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification
2, 6 color printing, the standard output achieves 75m2/hr.
3, AC servo motor is to run the carriage quicker and more stable.
4, Individual color purging minimizes the waste of the ink.
5, 3 way intelligent heater helps bring more vivid output.
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
7, Adopt USB2.0output system, faster and more flexible
MODEL
FY-3266J
Printhead
SII Printek Inc.
6 SPT1020/35PL
Number of printhead
4/6 Heads
Output Quantity (m2/h)
Print Mode
Outputs(m2/h)
Draft
2Pass
101
Standard
3Pass
75
Quality
4Pass
50
High Quality
6Pass
27
Back-lit
8Pass
27
Max. printing width
3200mm
Max. media width
3300mm
Ink
Type
Solvent ink
Color
(C,M,Y,K) or (C,M,Y,K,Lc,Lm)
Volume
2 liters main tank
Ink supply system
Ink level sensor. Auto-pumping
Media
Width
3300mm
Type
Banner, vinyl, polyester, etc
Feeding System
Single or double feeding bar. (Max weight 80kg)
Ph. Cleaning System
Individual color purging
Heating System
Back, middle, front, and extra heater.
Clamp
Equipped
Printhead Height
Adjustable distance from 2mm~6mm.
Power Specification
Printer: AC220V，50Hz 3.5A 770W
Heater: AC220V，50Hz 10A 2200W
Drying: AC220V，50Hz 15A 3300W
Printer Dimension/Weight
L4766xW930xH1350mm /640Kg
Package Dimension/Weight
L4980xW1140xH1620mm / 923Kg
Customers from all over the world
HOW TO ORDER
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...
Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.
Setp3.Confirm us receipt of products.
| TECHNICAL SUPPORT |
1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.
2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.
