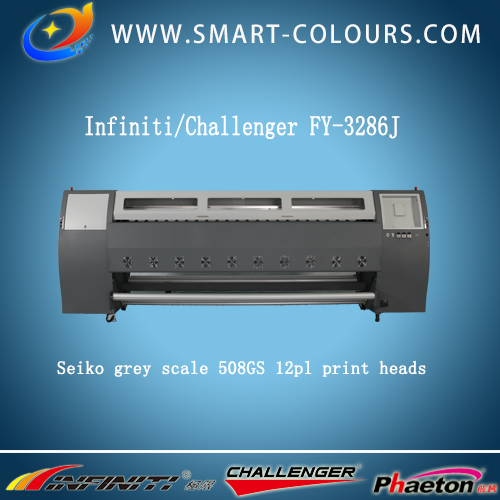

Infiniti/Challenger digital printer FY-3286J
NAME:Infiniti/Challenger FY-3286J
TYPE:Eco Solvent Inkjet Printer
Print Head:6 SEIKO 508GS 12pl Print Heads
Color:C/M/Y/K/Lc/Lm
Voltage/Gross Power:220V/770W
Dimensions(L*W*H):L4766*W930*H1350mm/640KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification
1.With 6 Seiko 508gs/12pl printheads,with the maximum resolution of 1440dpi.6 colors printing is up to 93sqm/h.Designed for high quality and heavy duty printing jobs.
2.3.2m max printing width
3.Alumium complete platform contains railroad stable and durable material,to optimize the accuracy of the feed material.
4.Contains continuous refill ink system,which can feed the desired color when this is Running low!
5. Adopt USB2.0 output system,faster and more flexible
6. AC X,Y servo motor operate stably
7.Speed data port, ensure high speed and quality and long scale output printing
|
Model |
FY-3286J |
|
Printhead |
Seiko Instrumet Group SPT Printhead From Japan |
|
Number of Printhead |
6 Heads |
|
Number of Model |
SPT 508 gray scale head (12-36 pico liter) |
|
Printhead Sequency |
1x6 |
|
Printing Speed |
Printing mode Output (m2/hr) Draf mode 2 PASS 93 Production mode 3 PASS 64 Quality mode 4 PASS 49 High qualitiy mode 6 PASS 32 |
|
Maximum Printing Width |
3,200mm(125.98inch) |
|
Ink |
Type : Solvent Ink & ECO-Solvent Ink Color: 6 Colors(C,M,Y,K,Lc,Lm) Capacity :1L or 5L Per Main Tank of Each Color Ink Supply System :Low Ink Detector, Auto or Manual Ink Supply System |
|
Media |
Width & Weight : Maximum3,300mm(129.92’’) 120KG
Type :Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media |
|
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning |
|
Pre-heat & Dry System |
Equipped (Drying System Optional) |
|
Clamp |
Equipped |
|
Printing Interface |
USB2.0 Cable |
|
Printhead High |
Above Media Adjustable |
|
RIP Software |
Maintop(equip) , UltraPrint ,Photoprint |
|
Power |
Printer :AC 220V, 50Hz 3.5A 770W Platen heating: AC 220V,50HZ 9A 1980W |
|
Machine Dimension |
L4, 500 x W905 x H1,260mm / 348KG |
|
Package Dimension |
L4, 590 x W1,050 x H890mm / 591KG |
|
Operation Environment |
Temperature : 20°C~28°C Humidity : 40%~60% |
| Customers from all over the world |
| HOW TO ORDER |
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...
Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.
Setp3.Confirm us receipt of products.
| TECHNICAL SUPPORT |
1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.
2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.
