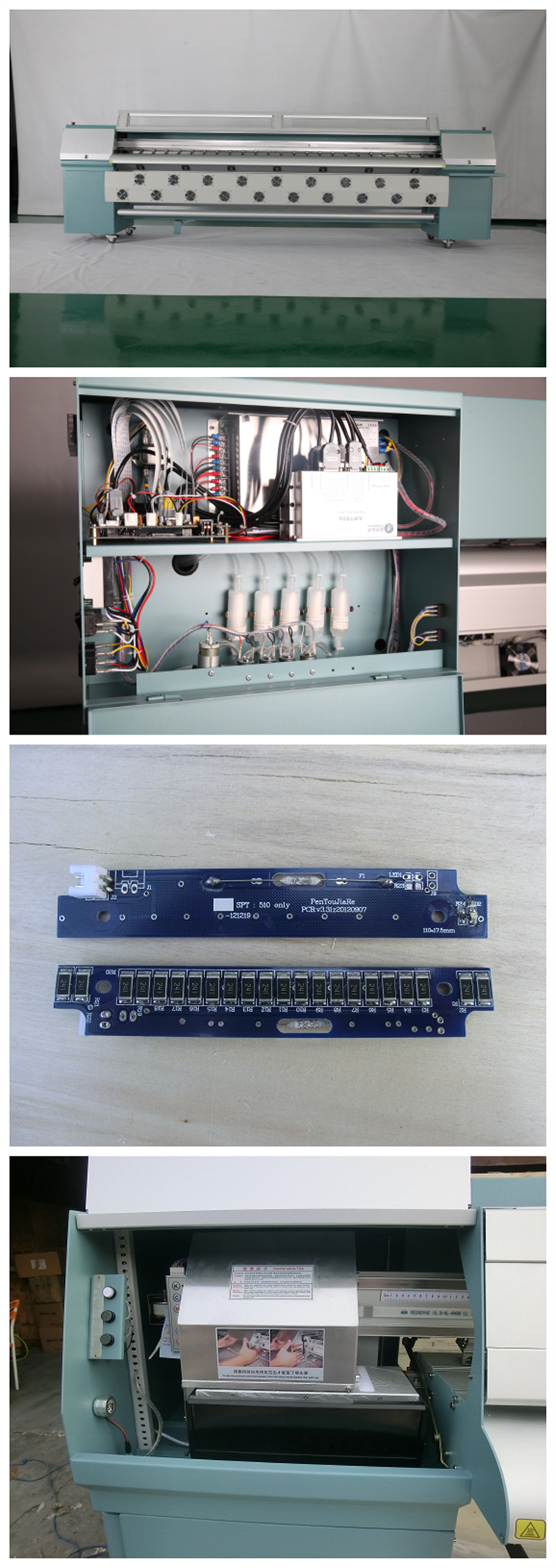

Infiniti FY-3208T ,3.2m large format Solvent Printer
NAME:Infiniti/Challenger FY-3208T
TYPE:Solvent Inkjet Printer
Print Head:4/8 SEIKO 510/35pl Print Heads
Color:C/M/Y/K
Voltage/Gross Power:220V/770W
Dimensions(L*W*H):L4460*W905*H1280mm/348KGS
Warranty:1 Year
Place Of Origin:Guangdong,China
Detailed Specification
1, Equipped with 4 or 8Seiko SPT 510/35PL
2, 4 color printing, high speed .
3, AC servo motor is used to run the carriage quicker and more stable.
2.Individual color purging minmizes the waste of the ink.
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
| Model |
FY-3208T |
| Printhead |
Seiko Instrumet Group SPT Printhead From Japan |
| Number of Printhead | 8 or 4 Heads |
| Number of Model | SPT-510/35pl |
| Printhead Sequency | 1x8 |
| Printing Speed |
Printing mode Output (m2/hr)
Draf mode 101 m2/hr
Production mode 76 m2/hr
Quality mode 51 m2/hr
High qualitiy mode 28 m2/hr |
| Maximum Printing Width | 3,200mm(125.98inch) |
| Ink |
Type : Solvent Ink & ECO-Solvent Ink
Color: double 4 Colors(C,M,Y,K)
Capacity :1L or 5L Per Main Tank of Each Color
Ink Supply System :Low Ink Detector, Auto or Manual Ink Supply System |
| Media |
Width & Weight : Maximum3,300mm(129.92’’) 120KG
Type :Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media |
| Heating System | 3 way intelligent heater (Pre/Post Heater,Cooling Fan System) |
| Cleaning& Moisturizing System |
Positive pressure separations cleaning, automatic moisture, cleaning at the LED lighting
|
| Pre-heat & Dry System | Equipped (Drying System Optional) |
| Clamp | Equipped |
| Printing Interface | USB2.0 Cable |
| Printhead High | Above Media Adjustable |
| RIP Software | Maintop(equip) , UltraPrint ,Photoprint |
| Power |
Printer :AC 220V, 50Hz 3.5A 770W
Platen heating: AC 220V,50HZ 9A 1980W
|
| Machine Dimension | L4460 x W905 x H1280 mm 348 KG |
| Package Dimension | L4650 x W970 x H1550 mm 591 KG |
| Operation Environment | Temperature : 20°C~28°C Humidity : 40%~60% |
| Customers from all over the world |
| HOW TO ORDER |
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...
Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.
Setp3.Confirm us receipt of products.
| TECHNICAL SUPPORT |
1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.
2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.
