Infiniti/Challenger FY-3208R Solvent Printer with Seiko 510 Head

Name:Infiniti/Challenger FY-3208R


Type:Solvent Inkjet Printer


Print Head:4/6/8 SEIKO 510/35pl Print Heads


Color:C/M/Y/K or C/M/Y/K/Lc/Lm


Voltage/Gross Power:220V/770W


Dimensions(L*W*H):L4500*W905*H1260,350KGS


Warranty:1 Year


Place Of Origin:Guangdong,China


鏆傛棤鐩稿叧淇℃伅!
鏆傛棤鐩稿叧淇℃伅!

Detailed Specification



1.Equipped with 4/6/8 Seiko 510 printheads,voltage adjustable!Avoiding printhead clogging under huge temperature change!

2.Infiniti SK-4 ink,vivid color,high climate-resistant and long durability,ensure the printing quality!

3.4 colors printing,achieved high printing speed,draft printing is up to 101sqm/h.

4.3 way heatr,acceclerate the drying

5.New 2.0 USB interface,more faster and stable

5.Full alluminium platform and railroad,to optimize the accuracy of printing


Model

FY-3208R

FY-3206R

FY-3204R

Printhead

Drop on demand Piezo Head(SPT510-35PL)

Mumber of Printhead

8 Heads

6 Heads

4 Heads

Maximun Print Width

3200mm (10.5ft)

Print Speed

Draft

101m2/hr 360X360dpi 1Pass

54m2/hr 360X360dpi 1Pass

54m2/hr 360X360dpi 1Pass

Production

76m2/hr 240X720dpi   2Pass

44m2/hr 240X720dpi 2Pass

44m2/hr 240X720dpi 2Pass

Quality

51m2/hr 240x1080dpi 3Pass

27m2/hr 240x1080dpi 3Pass

27m2/hr 240x1080dpi 3Pass

High Quality

28m2/hr 720x720dpi   4Pass

16m2/hr 720x720dpi 4Pass

16m2/hr 720x720dpi 4Pass

Media

Width

3300mm (10.8ft)

Max.Weight

120kg

Type

Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper

Thickness

4mm(Max.)

Heating System

3 way intelligent heater

Auto Media Feeding&Take-up System

Equipped

Ink

Type

Solvent, Eco-Solvent

Capacity

1L or 5L per Color Main Tank

Auto Cleaning System

Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System

Print Interface

USB2.0

Power Specification

Printer :AC 220V, 50Hz 3.5A 770W/  Heater: AC 220V,50HZ 9A 1980W

Operational Environment

Temperature20°C-28°C   Humidity40%-60%

Compatible RIP Software

Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop

Dimension&Weight

Machine

L4,460 x W905 x H1,280mm; Net Weight: 348Kgs

Packae

L4,650x W970 x H1550mm; Gross Weight: 591Kgs


Customers from all over the world


HOW TO ORDER
Step1.After making every details clear with our sales,please confirm orders to us.We will send you a proforma invoice(PI). Need your informations,such as full name,country,city,detial address,post code,tax number, tel ...

Step2.Send payment T/T or West union accroding to the PI & send back us the proof .We will delivery within 5 working days after payment confirmed.Balance payment should  be paid uppn copy of B/L. On receipt of the banlance payment,we will send you the origin B/L by Fedex.

Setp3.Confirm us receipt of products.


TECHNICAL SUPPORT

1. Any question we ensure to try our best to help you.By email,vedio,TEL,long-distance computer control and so on.We company has the experts and professional skill team for machine who has more than 10 years experience about the printers.Free trainning is avaliable.

2. All kinds of original spare parts for the machine to ensure your machine running smoothly.What is more,all the printers have 1 year warranty.During the warrnty,if any problems of the parts,you can send us back to repair or exchange.

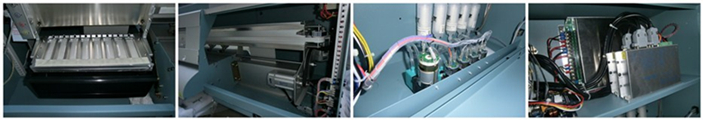

Photos
